| Rated Voltage | 50V | 100V | 200V | 300V |
|---|---|---|---|---|
| Max Capacitance (µF) | 120 | 100 | 33 | 27 |
| 1 MHz | 23 | 20 | 12 | 10 |
| 10 MHz | 41 | 38 | 32 | 28 |
| 100 MHz | 59 | 56 | 50 | 45 |
| 1 GHz | >70 | >70 | 65 | 62 |
| 10 GHz | >70 | >70 | >70 | >70 |
| Part Number | Cap Value (pF) | Voltage Rating (VDC) | Current Rating (A) | 1 MHz | 10 MHz | 100 MHz | 1 GHz | 10 GHz |
|---|---|---|---|---|---|---|---|---|

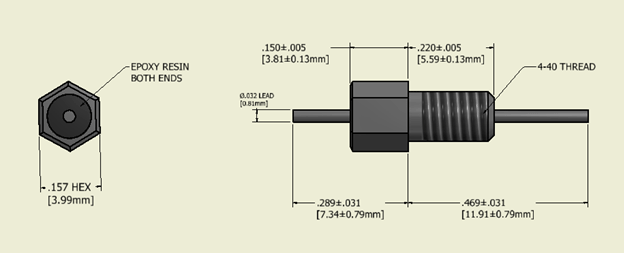

| 620-103C | 10,000 | 200 | 10 | 4 | 23 | 41 | 58 | 70 |
| 620-472B | 4,700 | 100 | 10 | 15 | 30 | 45 | 55 | |
| 621-273B | 27,000 | 100 | 10 | 12 | 32 | 53 | 70 | >70 |
| 621-333B | 33,000 | 100 | 10 | 14 | 34 | 54 | 70 | >70 |
| Rated Voltage | 50V | 100V | 200V | 300V |
|---|---|---|---|---|
| Max Capacitance (µF) | 0.22 | 0.18 | 0.068 | 0.047 |
| 1 MHz | 23 | 22 | 13 | 11 |
| 10 MHz | 43 | 42 | 33 | 31 |
| 100 MHz | 61 | 60 | 53 | 51 |
| 1 GHz | >70 | >70 | >70 | >70 |
| 10 GHz | >70 | >70 | >70 | >70 |
| Part Number | Cap Value (pF) | Voltage Rating (VDC) | Current Rating (A) | 1 MHz | 10 MHz | 100 MHz | 1 GHz | 10 GHz |
|---|---|---|---|---|---|---|---|---|
| 620-103C | 10,000 | 200 | 10 | 4 | 23 | 41 | 58 | 70 |
| 620-472B | 4,700 | 100 | 10 | 15 | 30 | 45 | 55 | |
| 621-273B | 27,000 | 100 | 10 | 12 | 32 | 53 | 70 | >70 |
| 621-333B | 33,000 | 100 | 10 | 14 | 34 | 54 | 70 | >70 |
| Rated Voltage | 50V | 100V | 200V | 300V |
|---|---|---|---|---|
| Max Capacitance (µF) | 0.36 | 0.27 | 0.12 | 0.082 |
| 1 MHz | 32 | 30 | 23 | 20 |
| 10 MHz | 52 | 50 | 43 | 40 |
| 100 MHz | >70 | >70 | 63 | 60 |
| 1 GHz | >70 | >70 | >70 | >70 |
| 10 GHz | >70 | >70 | >70 | >70 |
| Part Number | Cap Value (pF) | Voltage Rating (VDC) | Current Rating (A) | 1 MHz | 10 MHz | 100 MHz | 1 GHz | 10 GHz |
|---|---|---|---|---|---|---|---|---|

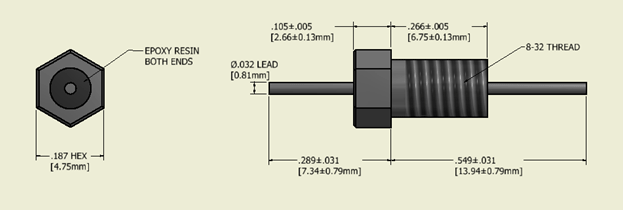

| 640-103B | 10,000 | 100 | 10 | 4 | 23 | 41 | 58 | 70 |
| 640-154B | 150,000 | 100 | 10 | 26 | 44 | 60 | 70 | >70 |
| 640-502C | 5,000 | 200 | 10 | 7 | 17 | 35 | 47 | 55 |
| Rated Voltage | 50V | 100V | 200V | 300V |
|---|---|---|---|---|
| Max Capacitance (µF) | 0.22 | 0.18 | 0.068 | 0.047 |
| 1 MHz | 28 | 27 | 18 | 16 |
| 10 MHz | 47 | 45 | 36 | 35 |
| 100 MHz | 64 | 63 | 53 | 50 |
| 1 GHz | >70 | >70 | >70 | 66 |
| 10 GHz | >70 | >70 | >70 | >70 |
| Rated Voltage | 50V | 100V | 200V | 300V |
|---|---|---|---|---|
| Max Capacitance (µF) | 0.36 | 0.27 | 0.12 | 0.082 |
| 1 MHz | 35 | 32 | 25 | 20 |
| 10 MHz | 45 | 45 | 40 | 38 |
| 100 MHz | >70 | >70 | >70 | >70 |
| 1 GHz | >70 | >70 | >70 | >70 |
| 10 GHz | >70 | >70 | >70 | >70 |
| Part Number | Cap Value (pF) | Voltage Rating (VDC) | Current Rating (A) | 1 MHz | 10 MHz | 100 MHz | 1 GHz | 10 GHz |
|---|---|---|---|---|---|---|---|---|
| 643-252C | 2,500 | 200 | 10 | 12 | 45 | 70 | >70 | |
| 643-473A | 47,000 | 50 | 10 | 20 | 60 | >70 | >70 | >70 |
| Rated Voltage | 50V | 100V | 200V | 300V |
|---|---|---|---|---|
| Max Capacitance (µF) | 1.4 | 1.2 | 0.56 | 0.47 |
| 1 MHz | 44 | 43 | 36 | 35 |
| 10 MHz | 60 | 59 | 52 | 51 |
| 100 MHz | >70 | >70 | 67 | 66 |
| 1 GHz | >70 | >70 | >70 | >70 |
| 10 GHz | >70 | >70 | >70 | >70 |
| Part Number | Cap Value (pF) | Voltage Rating (VDC) | Current Rating (A) | 1 MHz | 10 MHz | 100 MHz | 1 GHz | 10 GHz |
|---|---|---|---|---|---|---|---|---|

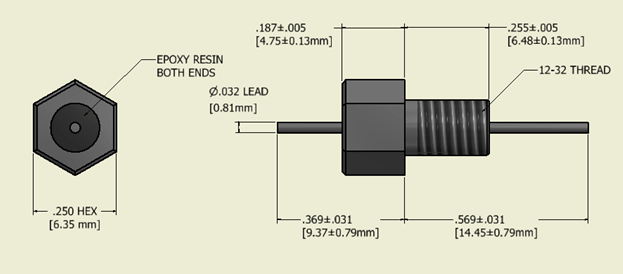

| 650-103B | 10,000 | 100 | 10 | 4 | 23 | 41 | 58 | 70 |
| 650-103C | 10,000 | 200 | 10 | 4 | 23 | 41 | 58 | 70 |
| 650-204B | 200,000 | 100 | 10 | 29 | 48 | 65 | >70 | >70 |
| 650-471B | 470 | 100 | 10 | 12 | 32 | 50 | ||
| 650-683C | 68,000 | 200 | 10 | 20 | 38 | 56 | >70 | >70 |
| Rated Voltage | 50V | 100V | 200V | 300V |
|---|---|---|---|---|
| Max Capacitance (µF) | 0.68 | 0.56 | 0.33 | 0.22 |
| 1 MHz | 44 | 43 | 36 | 35 |
| 10 MHz | 60 | 59 | 52 | 51 |
| 100 MHz | >70 | >70 | 67 | 66 |
| 1 GHz | >70 | >70 | >70 | >70 |
| 10 GHz | >70 | >70 | >70 | >70 |
| Rated Voltage | 50V | 100V | 200V | 300V |
|---|---|---|---|---|
| Max Capacitance (µF) | 0.82 | 0.68 | 0.47 | 0.27 |
| 1 MHz | 47 | 45 | 40 | 37 |
| 10 MHz | >70 | >70 | >70 | >70 |
| 100 MHz | >70 | >70 | 67 | 66 |
| 1 GHz | >70 | >70 | >70 | >70 |
| 10 GHz | >70 | >70 | >70 | >70 |
| Part Number | Cap Value (pF) | Voltage Rating (VDC) | Current Rating (A) | 1 MHz | 10 MHz | 100 MHz | 1 GHz | 10 GHz |
|---|---|---|---|---|---|---|---|---|
| 653-103B | 10,000 | 100 | 10 | 18 | 60 | >70 | >70 | |
| 653-103C | 10,000 | 200 | 10 | 18 | 60 | >70 | >70 | |
| 653-123C | 12,000 | 200 | 10 | 7 | 70 | >70 | >70 | |
| 653-333C | 33,000 | 200 | 10 | 14 | 40 | 70 | >70 | >70 |
| 653-503A | 50,000 | 50 | 10 | 40 | 60 | 70 | >70 | >70 |
| 653-503B | 50,000 | 100 | 10 | 40 | 60 | 70 | >70 | >70 |
